Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:
Test 1:

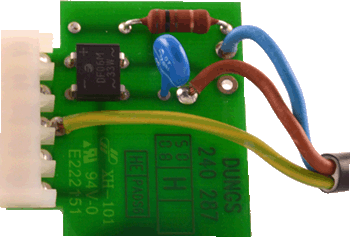

Measure the resistance across the resistor.
Expect approximately 100 ohms.
Test 2:
Now switch the multimeter to the diode setting.
To see how to switch the multimeter to the diode setting CLICK HERE
Note:
It is vital that the correct colour probes are used on the test points as indicated in the table above, failure to do so will result in incorrect readings.
Measure the resistance across the resistor.
Expect approximately 100 ohms.
Test 2:
Now switch the multimeter to the diode setting.
To see how to switch the multimeter to the diode setting CLICK HERE
| Test N° and probe colour | Expected reading (Vdc) |
| 1 (Red) 2 (Black) | 0.54 |
| 2 (Black) 3 (Red) | 0.54 |
| 3 (Black) 4 (Red) | 0.54 |
| 1 (Black) 4 (Red) | 0.54 |
Note:
It is vital that the correct colour probes are used on the test points as indicated in the table above, failure to do so will result in incorrect readings.
