DHW FLOW VALVE DIAPHRAGM
Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Water OFF
Appliance discharge and drain
Observation:

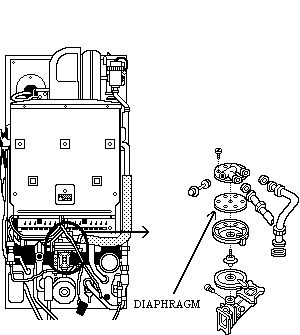

Remove and inspect the DHW flow valve diaphragm.
DIAPHRAGM IN GOOD CONDITION
DIAPHRAGM DAMAGED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
