Set Appliance State:
Mains Power Off
Gas Off
Rotary Switch in DHW position
Keep Boiler Case Switch depressed
Keep Boiler Case Switch depressed
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

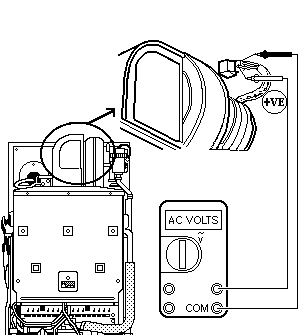

Measure the voltage across the Red and Grey wires at the fan connector plug located at the top right hand side of the boiler.
The voltage should be approximately 80 volts AC.
The voltage should be approximately 80 volts AC.

Isolate as per TOPs P4
and refit as necessary
