INTERMEDIATE SPARK CONNECTOR
Set Appliance State:
Gas Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

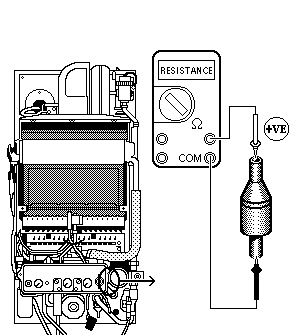

Check the intermediate ignition spark output connector inside the electrical control box and check it for continuity and signs of damage.
INTERMEDIATE CONNECTOR SHORT CIRCUIT
INTERMEDIATE CONNECTOR OPEN CIRCUIT
