PUMP FLOW VALVE DIAPHRAGM
Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Boiler Drained and Discharged
Observation:

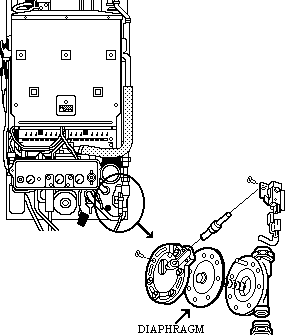

Remove and inspect the pump flow valve diaphragm.
DIAPHRAGM IN GOOD CONDITION
DIAPHRAGM DAMAGED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
