SPARK ELECTRODE
Set Appliance State:
Gas Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

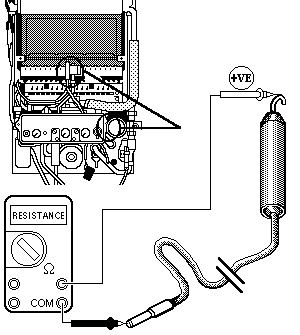

Remove and check the spark electrode and lead for continuity and signs of damage.
ELECTRODE AND LEAD SHORT CIRCUIT AND UNDAMAGED
ELECTRODE AND LEAD OPEN CIRCUIT OR DAMAGED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
