Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Appliance drained and discharged

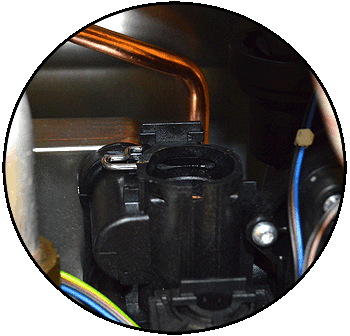

Remove the clip then prise out the internal bypass from right hand side hydraulic block
By-pass is located behind the diverter valve
Note.
The diverter stepper motor and valve body may need to be removed to gain better access
Remove the clip then prise out the internal bypass from right hand side hydraulic block
By-pass is located behind the diverter valve
Note.
The diverter stepper motor and valve body may need to be removed to gain better access
Observation:
Inspect the bypass valve for contamination and damage.
To confirm correct operation, ensure there is light spring tension.
To confirm correct operation, ensure there is light spring tension.
Isolate as per TOPs P4
and refit as necessary
