CASE REMOVAL INSTRUCTIONS

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Measurement:

ar genus one net.case off panel down.gif

ar genus one net.case off.pcb displayed.gif

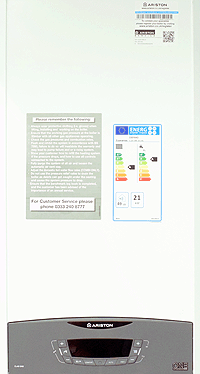

1. Remove the two torx securing screws underneath the appliance. Pull the bottom forwards and lift off top retaining lugs.

2. Release the 2 clips, the control panel can now be lowered into the service position.

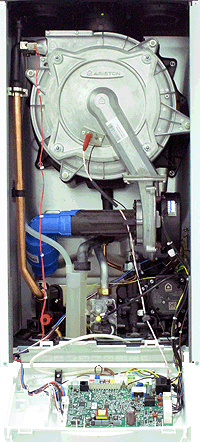

3. Release the 2 clips at the back of the control panel and lift up back section. To expose the PCB, remove the 2 screws, disconnect ignition lead and then lift out the control panel cover.
