Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |

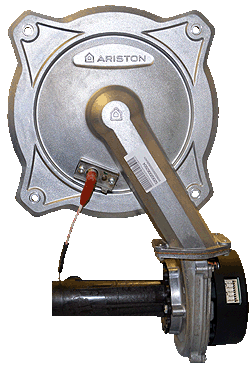

The burner door assembly should already be removed from previous test
Observation:

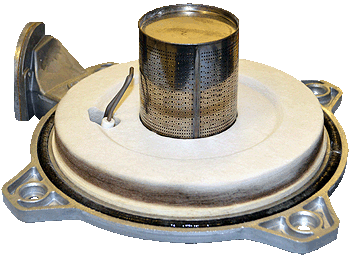

Inspect the burner for restrictions / blockages and good overall condition.
Confirm that the spark gap to the burner surface is 5mm +/- 1mm.
Note.
1. Do NOT reassemble the appliance if the visual inspections are satisfactory.
2. Always examine any seals or gaskets, replacing where necessary.
Confirm that the spark gap to the burner surface is 5mm +/- 1mm.
Note.
1. Do NOT reassemble the appliance if the visual inspections are satisfactory.
2. Always examine any seals or gaskets, replacing where necessary.
