Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On

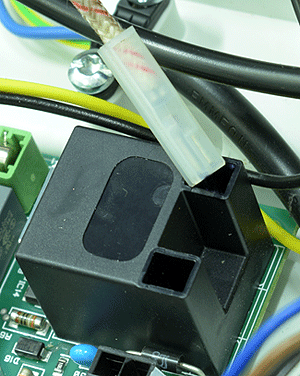

Disconnect the ignition lead from the PCB and with the aid of a crocodile clip position the ignition lead just off the terminal on the PCB (see images)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance if required.
(Press reset button once then release)
Allow fan to run and ignition sequence to commence.
As the appliance goes through repeated ignition attempts can a strong consistent spark be observed between the ignition lead and the spark generator terminal on the PCB ?
Note.
Appliance may enter lockout during test, reset as necessary until test complete.
(Press reset button once then release)
Allow fan to run and ignition sequence to commence.
As the appliance goes through repeated ignition attempts can a strong consistent spark be observed between the ignition lead and the spark generator terminal on the PCB ?
Note.
Appliance may enter lockout during test, reset as necessary until test complete.
Isolate as per TOPs P4
and refit as necessary
