Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Appliance drained and discharged

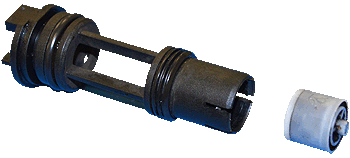

Remove internal bypass from left hand side hydraulic block
Note.
By-pass is located behind the safety valve, take care when removing as the by-pass has a tendency to pop out
Remove internal bypass from left hand side hydraulic block
Note.
By-pass is located behind the safety valve, take care when removing as the by-pass has a tendency to pop out
Observation:
Inspect the bypass valve for contamination and damage.
Ensure there is light spring tension to confirm correct operation.
Ensure there is light spring tension to confirm correct operation.
Isolate as per TOPs P4
and refit as necessary
