Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On

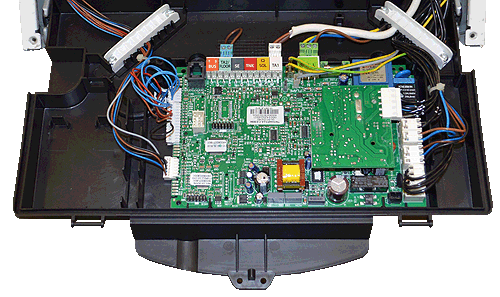

Remove the pump cable connector from the PCB and make safe
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Allow self check to complete.
Measure for AC voltage on pins 3 and 4 where the
pump cable connector was fitted.
Expect mains voltage.
Measure for AC voltage on pins 3 and 4 where the
pump cable connector was fitted.
Expect mains voltage.

Isolate as per TOPs P4
and refit as necessary
