Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
Attach a temperature clamp to the flow pipe

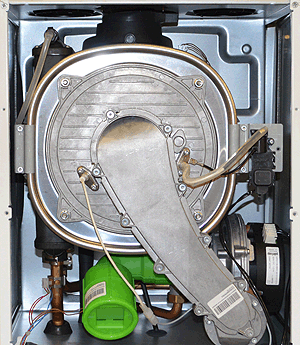

Remove silencer and attach a temperature clamp to the return pipe behind the fan
Refit the silencer
Note.
Ensure a good connection is made with the flow and return pipes or misdiagnosis will occur and ensure silencer is refitted before carrying out the test
Remove silencer and attach a temperature clamp to the return pipe behind the fan
Refit the silencer
Note.
Ensure a good connection is made with the flow and return pipes or misdiagnosis will occur and ensure silencer is refitted before carrying out the test
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Allow the appliance to run for central heating and the system to heat up.
Measure the temperature differential across the flow and return pipes.
Expect a temperature differential of approximately 20°C or less.
Measure the temperature differential across the flow and return pipes.
Expect a temperature differential of approximately 20°C or less.
