Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Remove connector CN3 from the PCB

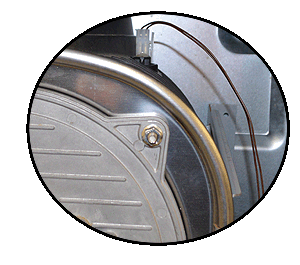

Disconnect the connector from the thermofuse
Disconnect the connector from the thermofuse
Measurement:
Test 1.
Measure the resistance between pin 5 (brown) on
connector CN3 to pin 1 on the thermofuse harness
Test 1.
Measure the resistance between pin 6 (brown) on
connector CN3 to pin 2 on the thermofuse harness
Expect continuity / zero resistance on each test.
Also visually inspect the condition of the harness.
Measure the resistance between pin 5 (brown) on
connector CN3 to pin 1 on the thermofuse harness
Test 1.
Measure the resistance between pin 6 (brown) on
connector CN3 to pin 2 on the thermofuse harness
Expect continuity / zero resistance on each test.
Also visually inspect the condition of the harness.

Isolate as per TOPs P4
and refit as necessary
