RESISTANCE HARNESS THERMOFUSE

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove connector CN22 from the PCB

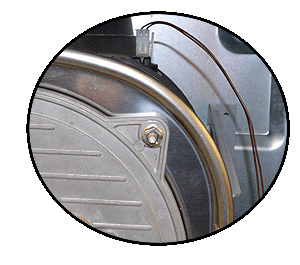

Disconnect the connector from the thermofuse

Measurement:

Measure the resistance between pins 5 and 6 (brown wires) on
connector CN22 to the corresponding pins of the thermofuse harness
as indicated below.
Expect continuity / zero resistance on both tests.
Also visually inspect the condition of the harness.

Note.
On some PCB's the connector will be labelled as CN23 not CN22 and its orientation will differ, however the test points and expected results remain the same.
