Set Appliance State:
Turn Hot Water Tap On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
1. Press the Reset button for 5 seconds, the appliance will show t - -

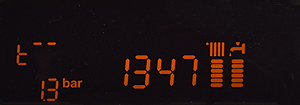

2. Turn the encoder (CH temperature control knob) clockwise, t will appear on the display to signify that the appliance is operating at MAX power.
3. Turn the encoder (CH temperature control knob) anti-clockwise.

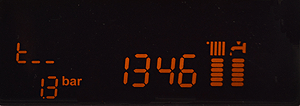

4. t will appear on the display to signify that the appliance is operating at MIN power.
Note.
The function is automatically deactivated after 10 minutes or by pressing the Reset button.
2. Turn the encoder (CH temperature control knob) clockwise, t will appear on the display to signify that the appliance is operating at MAX power.
3. Turn the encoder (CH temperature control knob) anti-clockwise.
4. t will appear on the display to signify that the appliance is operating at MIN power.
Note.
The function is automatically deactivated after 10 minutes or by pressing the Reset button.
