HOW TO ACCESS THE PARAMETER SERVICE CODE

None

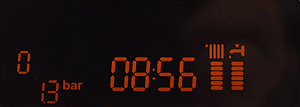

1. Press the menu / OK button, the first digit '0' will flash on the display.

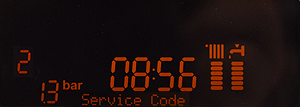

3. Press the menu / OK button, the second digit '1' will flash on the display, 'Service code' will appear along the bottom of the display.

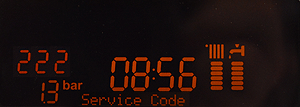

4. Press the menu / OK button '222' will appear on the display, this will alternate with 'cod'

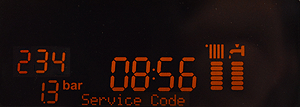

5.Turn the encoder (CH temperature control knob) clockwise until '234' is displayed, this will alternate with 'cod'.
This is the service code which allows access to view and modify the appliance parameter settings.

CLICK HERE ONCE THE SERVICE CODE HAS BEEN ENTERED

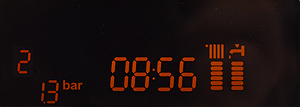

2. Turn the encoder (CH temperature control knob) clockwise until '2' is displayed, this digit will now flash, 'Boiler parameters' will scroll along the bottom of the display
