ARISTON GENUS HE - CASE REMOVAL INSTRUCTIONS

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Measurement:

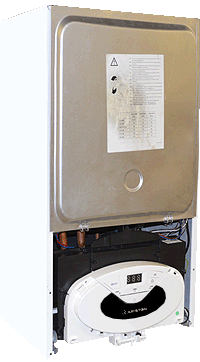

ar clas he 24 system.case off panel up.gif

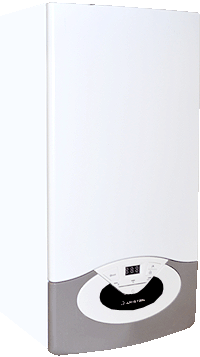

Unclip and remove the plastic cover (A) surrounding the control panel. Remove the two securing screws (B) Pull the bottom forwards and lift off top retaining lugs.

Lower the control panel (C) to allow access to release 2 clips (D) retaining the combustion cover.
Pull the bottom forwards and lift off top retaining lugs.
