INSPECTION INTERNAL BYPASS

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Appliance drained and discharged
Remove internal bypass from left hand side hydraulic block
By-pass is located behind the safety valve

Observation:

Inspect the bypass valve for contamination and damage.
Ensure there is light spring tension to confirm correct operation.

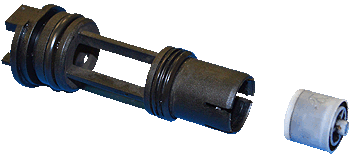

By-pass

Note.
When removing the bypass valve make a note of which way round it fits and ensure it is fitted back into the body the correct way upon reassembly
