Set Appliance State:
Turn Hot Water Tap On
Gas On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset the appliance if required.
(Press reset button once then release)
Approximately 5 seconds after the fan begins to run the burner should ignite and establish.

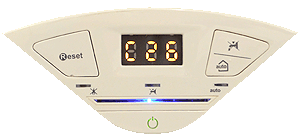

The LED will illuminate blue once established.
Does the burner ignite and establish correctly?
Note.
The appliance will have 3 attempts before lockout occurs.
Reset as required.
(Press reset button once then release)
Approximately 5 seconds after the fan begins to run the burner should ignite and establish.
The LED will illuminate blue once established.
Does the burner ignite and establish correctly?
Note.
The appliance will have 3 attempts before lockout occurs.
Reset as required.
