Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to DC Volts
Gain access to PCB (use Insulation Mat as required)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

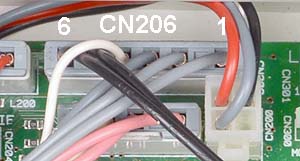

Measure for DC volts across pin 3 (pink) CN203 and pin 4 (white) CN206 main PCB.
The voltage measured will depend if a fault has been detected in certain circuitry, if 12 Vdc is measured NO fault has been detected and choose that option from below.
Note:
Ensure a good connection is made or misdiagnosis will occur.
The voltage measured will depend if a fault has been detected in certain circuitry, if 12 Vdc is measured NO fault has been detected and choose that option from below.
Note:
Ensure a good connection is made or misdiagnosis will occur.
