Set Appliance State:

Set Multimeter to Resistance Set meter to measure resistance
Isolate Mains Power to appliance as per TOPs P4

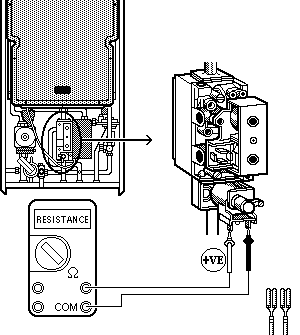

Remove the two Grey wires from the Modureg Solenoid (1)

Measurement:

Check resistance across terminals of modulating solenoid.
Resistance should be approximately 130 ohms.
Reconnect wires to modulating solenoid.
