Set Appliance State:
Mains Power Off
Gas Off
Turn Hot Water Tap On
Mains Isolator Switch (ON/OFF Switch) in ON position
Selector Switch in DHW Summer position
Hot Water Temperature Control set to Maximum
Selector Switch in DHW Summer position
Hot Water Temperature Control set to Maximum
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

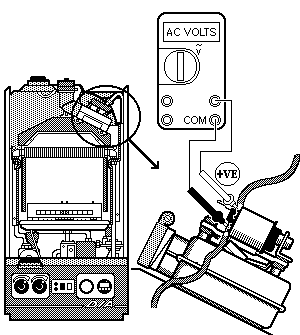

Measure voltage across fan connections White/Red wire and Blue wire at fan.

Isolate as per TOPs P4
and refit as necessary
