Set Appliance State:
Set Multimeter to AC Volts
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
Expose PCB by removing plastic control box cover.
Mains Isolator Switch (ON/OFF Switch) in ON position
Selector Switch in DHW Summer position
Hot Water Temperature Control set to Maximum
Expose PCB by removing plastic control box cover.
Mains Isolator Switch (ON/OFF Switch) in ON position
Selector Switch in DHW Summer position
Hot Water Temperature Control set to Maximum
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

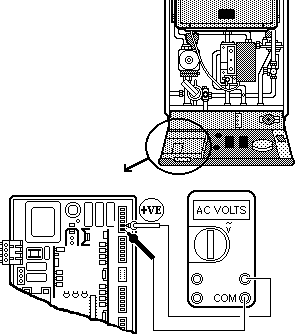

Measure voltage across connection D5 (White/Black wire) and D6 (Blue wire) on PCB.
Isolate as per TOPs P4
and refit as necessary
