FUSE F1
Set Appliance State:

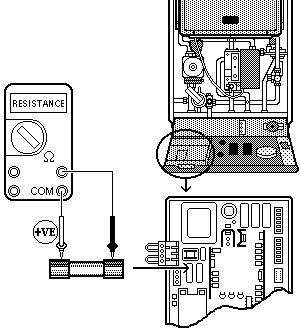

Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Remove the Fuse F1 from PCB.
Measurement:
Check fuse has a short circuit resistance.
Replace fuse.
RESISTANCE SHORT CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
