Set Appliance State:
CH Demand
Isolate Mains Power to appliance as per TOPs P4
Mains Isolator Switch (ON/OFF Switch) in ON position
Selector Switch in CH/DHW Winter position
Heating Temperature Control set to Maximum

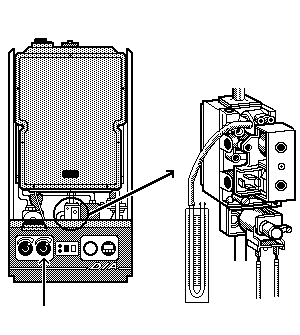

Attach u-gauge to burner pressure test point
Mains Isolator Switch (ON/OFF Switch) in ON position
Selector Switch in CH/DHW Winter position
Heating Temperature Control set to Maximum
Attach u-gauge to burner pressure test point
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Burner pressure should be at its set pressure between 3.0 and 12.3 mbar.
After allowing boiler to heat up for at least 1 minute, slowly reduce the CH temperature control setting until burner pressure falls to a minimum of 3.0 mbar.
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
After allowing boiler to heat up for at least 1 minute, slowly reduce the CH temperature control setting until burner pressure falls to a minimum of 3.0 mbar.
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
