G.C. Number 47 116 04
The casing is fixed to the boiler frame by 4 screws.

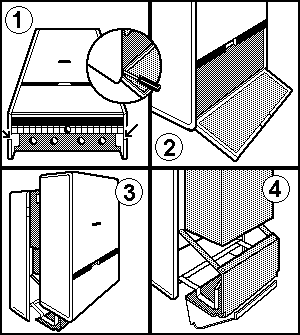

To remove the casing first remove the 2 screws located at the bottom of the boiler (figure 1). To do this it is suggested that the case door is open and a long pozi-drive No. 2 screwdriver is used.
Secondly remove the 2 screws located on the front of the boiler, under the case door (figure 2). Use the same screwdriver as before.
Next, remove the case by pulling upwards and forwards (figure 3).
Lastly remove the 2 screws at the top of the control panel using the same screwdriver as above. Support the panel whilst lowering (figure 4).
The casing is fixed to the boiler frame by 4 screws.
To remove the casing first remove the 2 screws located at the bottom of the boiler (figure 1). To do this it is suggested that the case door is open and a long pozi-drive No. 2 screwdriver is used.
Secondly remove the 2 screws located on the front of the boiler, under the case door (figure 2). Use the same screwdriver as before.
Next, remove the case by pulling upwards and forwards (figure 3).
Lastly remove the 2 screws at the top of the control panel using the same screwdriver as above. Support the panel whilst lowering (figure 4).
Isolate as per TOPs P4
and refit as necessary
