Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Ensure timer is calling
Ensure timer is calling
Measurement:

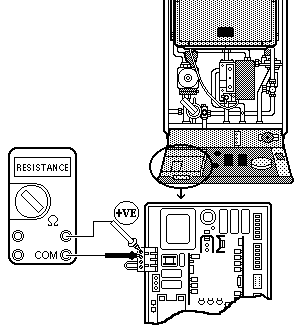

Check for short circuit resistance between C3 and C4.
Terminals are on the L/H side of the PCB.
Terminals are on the L/H side of the PCB.
