Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Expose PCB by removing plastic control box cover.
Mains Isolator Switch (ON/OFF Switch) in ON position
Expose PCB by removing plastic control box cover.
Mains Isolator Switch (ON/OFF Switch) in ON position
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

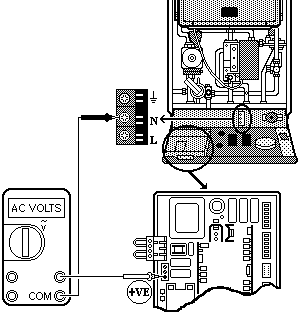

Measure voltage across Brown wire on connector A on the PCB and Neutral (Blue wire) on the terminal block at the base of the control panel.

Isolate as per TOPs P4
and refit as necessary
