XSol Diagnostic System

PRIMARY SENSOR

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove the orange leads from the primary sensor

Measurement:

Measure the resistance across the exposed terminals of the sensor.


bg cc1 inner 1.gif

bg cc1 e27223 thr dhw orange leads.gif

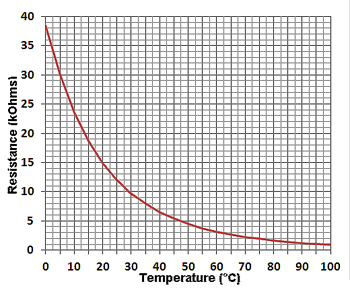

Resistances vary with temperature and should conform approximately to the table below:

Temperature Range (°C)	Resistance Range
0°C to 10°C	24.0kΩ - 39.0kΩ
10°C to 20°C	15.0kΩ - 24.0kΩ
20°C to 30°C	9.7kΩ - 15.0kΩ
30°C to 40°C	6.5kΩ - 9.7kΩ
40°C to 50°C	4.5kΩ - 6.5kΩ
50°C to 60°C	3.1kΩ - 4.5kΩ
60°C to 70°C	2.3kΩ - 3.1kΩ
70°C to 80°C	1.6kΩ - 2.3kΩ
80°C to 90°C	1.2kΩ - 1.6kΩ
90°C to 100°C	900Ω - 1.2kΩ

Note: Clicking on the resistance table will switch between table and graph view.
