Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
Remove burner assembly and burner manifold
Observation:

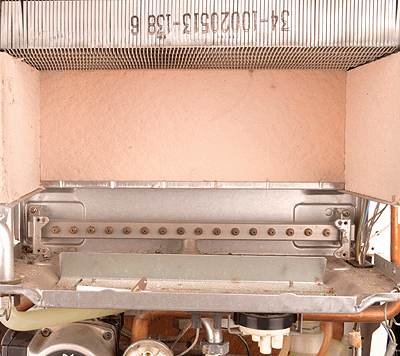

Thoroughly inspect the burner manifold checking the injectors
for restrictions, damage and general good condition.
Note:
1. The injector sealing washers must be replaced
if the injectors have been removed.
2. Upon reassembly all disturbed joints should
be checked for gas tightness.
for restrictions, damage and general good condition.
Note:
1. The injector sealing washers must be replaced
if the injectors have been removed.
2. Upon reassembly all disturbed joints should
be checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
