Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

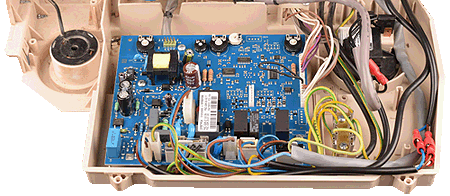

Remove connector CN9 from the PCB

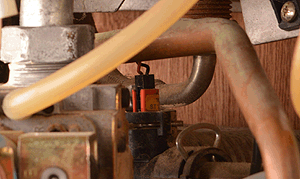

Remove the connector from the DHW thermistor
Remove the connector from the DHW thermistor
Measurement:
Test 1.
Measure the resistance between pin 5 (Red) on connector
CN9 and the red wire on the DHW thermistor connector.
Test 2.
Measure the resistance between pin 6 (Black) on connector
CN9 and the black wire on the DHW thermistor connector.
Expect continuity / zero resistance on both tests.
Also inspect the condition of the harness, visually checking
for any damaged insulation.
Measure the resistance between pin 5 (Red) on connector
CN9 and the red wire on the DHW thermistor connector.
Test 2.
Measure the resistance between pin 6 (Black) on connector
CN9 and the black wire on the DHW thermistor connector.
Expect continuity / zero resistance on both tests.
Also inspect the condition of the harness, visually checking
for any damaged insulation.

Isolate as per TOPs P4
and refit as necessary
