Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Disconnect the electrical connector from the actuator
Remove locking pin and release diverter valve actuator head
Note:
The actuator head can be removed without the need for draining
Remove locking pin and release diverter valve actuator head
Note:
The actuator head can be removed without the need for draining
Observation:

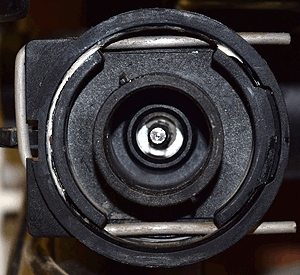

Inspect the following diverter valve components for signs of water:
Isolate as per TOPs P4
and refit as necessary
