Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

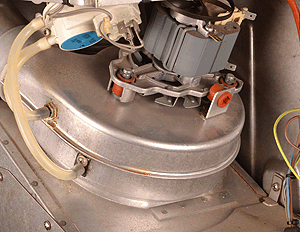

Remove the electrical connections from the fan
Measurement:
Test 1:
Measure the resistance between the fan terminals where the Live and Neutral leads were connected.
Expected resistance approximately 29 ohms.
Test 2: Resistance to Earth
Measure the resistance between the fan terminals where the Live and Earth leads were connected.
Expected resistance greater than 1 MOhm.
Measure the resistance between the fan terminals where the Live and Neutral leads were connected.
Expected resistance approximately 29 ohms.
Test 2: Resistance to Earth
Measure the resistance between the fan terminals where the Live and Earth leads were connected.
Expected resistance greater than 1 MOhm.

Isolate as per TOPs P4
and refit as necessary
