Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CASE REMOVAL

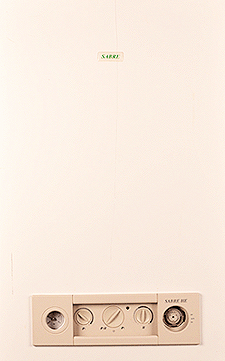

1. Outer Case Removal:
Remove the 2 screws located at the base of the outer case at the rear.
Once removed pull the outer case forward, then up and over the lugs.
Remove the 2 screws located at the base of the outer case at the rear.
Once removed pull the outer case forward, then up and over the lugs.

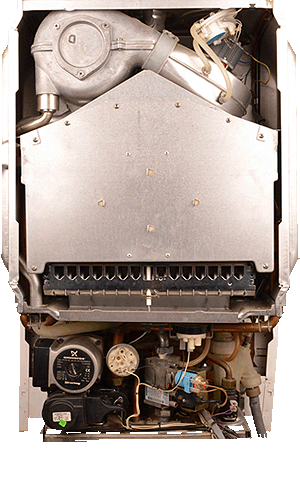

2. Combustion Chamber Removal:
Carefully release the 2 clips located at the bottom corners of the combustion chamber.
Once released pull the combustion chamber forward, then up and over the lugs.
Carefully release the 2 clips located at the bottom corners of the combustion chamber.
Once released pull the combustion chamber forward, then up and over the lugs.
