PRIMARY THERMISTOR

Set Multimeter to Resistance

Isolate Mains Power to appliance as per TOPs P4

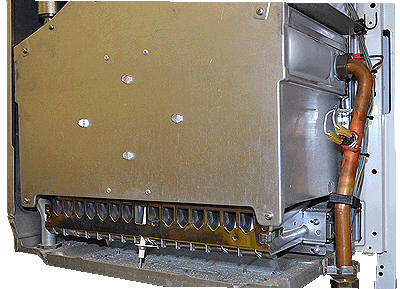

Remove the right hand side panel
Remove connector from the heat thermistor

Measure the resistance between the two pins on the thermistor.

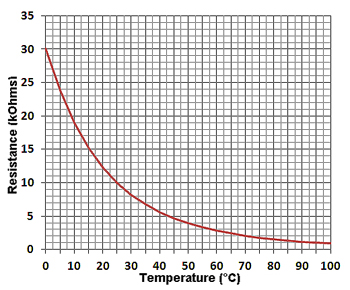

Resistances vary with temperature and should conform approximately to the table below:

Note:
Clicking on the resistance table will switch between table and graph view.
