Set Appliance State:
Mains Power Off
Mode selector switch to Off/Reset position
Turn Hot Water Tap On
Hot water temperature control set to maximum
Use insulation mat as necessary
Use insulation mat as necessary
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:

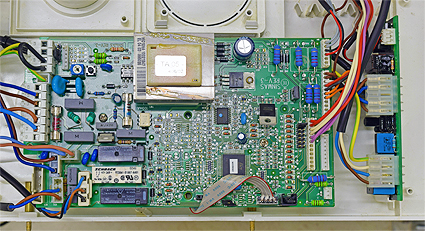

Measure the voltage across the blue and brown wires at connector M14 on the main PCB.

Isolate as per TOPs P4
and refit as necessary
