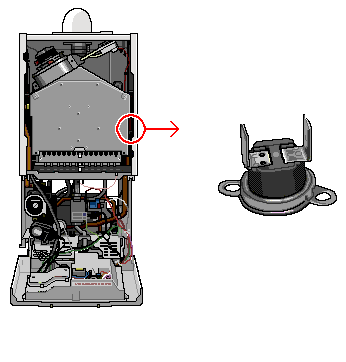

OVERHEAT THERMOSTAT
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Disconnect one of the wires from the overheat thermostat
Measurement:
Measure the resistance of the overheat thermostat.
RESISTANCE CLOSED CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
