Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOP's P4 |

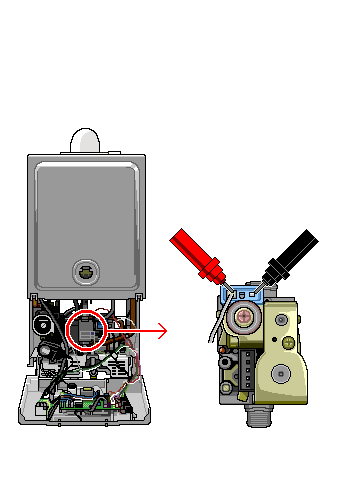

Disconnect one of the grey wires from the modulating solenoid
Measurement:
Measure the resistance across the modulating solenoid. Resistance should be approximately 80 Ohms.
Reconnect the wire after test.
Reconnect the wire after test.

Isolate as per TOPs P4
and refit as necessary
