FUSE F1
Set Appliance State:
Set Multimeter to Resistance
Isolate Mains Power to appliance
as per TOP's P4

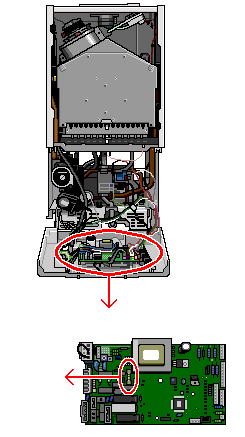

Remove fuse F1 from the main PCB
Measurement:
Measure the resistance of fuse F1.
Refit fuse after test.
RESISTANCE CLOSED CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
