MODULATION COIL RESISTANCE
Set Appliance State:
Gas Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

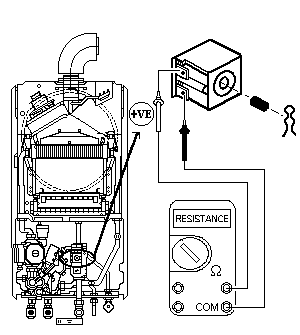

Check resistance of Modulation coil (middle) is approximately 42 ohms.
RESISTANCE APPROXIMATELY 42 OHM.
RESISTANCE INCORRECT.
