Set Appliance State:
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
Mode Selector Switch to DHW position

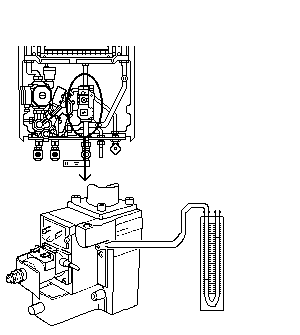

Connect U-gauge to pressure test point on Gas Valve
Mode Selector Switch to DHW position
Connect U-gauge to pressure test point on Gas Valve
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:
Is burner pressure greater than 1 mbar?
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Note:
When pressure gauge is removed the pressure test point should be tightened and checked for gas tightness.
Isolate as per TOPs P4
and refit as necessary
