Set Appliance State:
Mains Power Off
Gas Off
Set Multimeter to DC Volts
Turn Hot Water Tap On
Mode Selector Switch to DHW position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

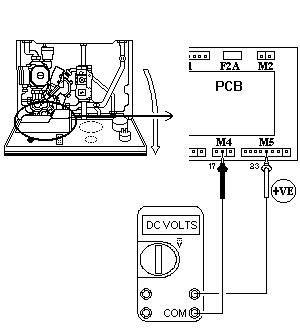

Measure approx 24V DC across connector M5 connection 23 (Purple) (+ve) and connector M4 connection 17 (White/Brown) (-ve).
