Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4

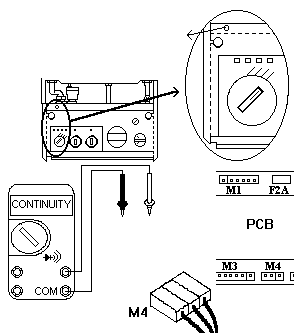

Unplug M4 & test at plug
Unplug M4 & test at plug
Measurement:
With -ve lead connected to centre White/Brown wire, measure approximately 1.5 on White/Purple wire and approximately 1.7 on White/Blue wire.
With +ve lead connected to centre White/Brown wire, measure .0L on both White/Purple wire and White/Blue wire.
Replace plug M4 after test.
With +ve lead connected to centre White/Brown wire, measure .0L on both White/Purple wire and White/Blue wire.
Replace plug M4 after test.

Isolate as per TOPs P4
and refit as necessary
