Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
Summer/Winter Switch set to Summer.
Remove combustion chamber cover.
Remove combustion chamber cover.
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:

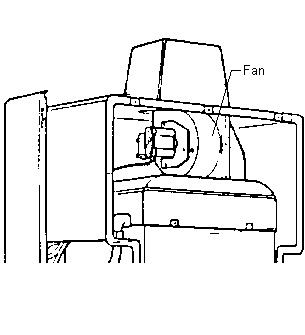

HW tap OFF - fan will be rotating at slow speed.
Turn on HW tap, fan should rotate at full speed.
Turn on HW tap, fan should rotate at full speed.
Isolate as per TOPs P4
and refit as necessary
