Set Appliance State:
Mains Power Off
Gas Off
Summer/Winter Switch set to Summer.
ON/OFF Switch ON.
ON/OFF Switch ON.
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

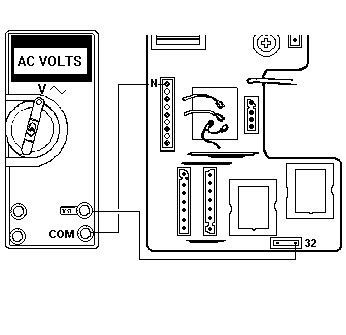

Measure voltage between N and pin 32, bottom right of PCB.

Isolate as per TOPs P4
and refit as necessary
