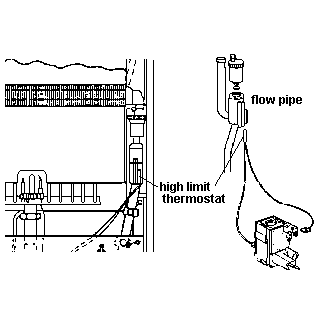

HIGH LIMIT THERMOSTAT
Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance
Measurement:
Remove wires from High Limit Thermostat.
Measure Resistance across leads.
SHORT CIRCUIT.
OPEN CIRCUIT, BLUE THERMOCOUPLE CONNECTOR BADLY WORN.
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
