Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Gain access to PCB (use Insulation Mat as required)
Summer/Winter Switch set to Winter.
Summer/Winter Switch set to Winter.
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

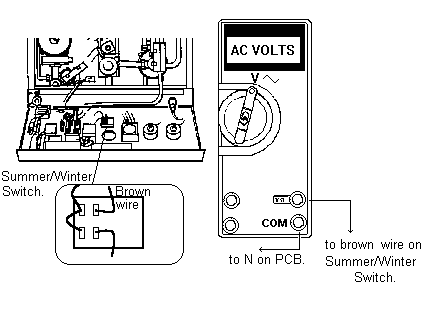

Measure voltage between N and the brown wire in the Summer/Winter Switch.

Isolate as per TOPs P4
and refit as necessary
