Set Appliance State:
Mains Power Off
Gas Off
Turn Hot Water Tap On
Summer/Winter Switch set to Summer.
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:

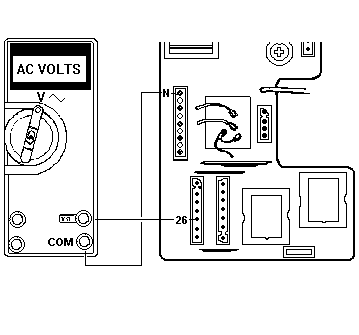

Connect multimeter to pin 26 (+ve) and Neutral.
Turn on HW tap and measure voltage.
Turn on HW tap and measure voltage.

Isolate as per TOPs P4
and refit as necessary
