Set Appliance State:
Mains Power Off
Gas Off
Turn Hot Water Tap On
Summer/Winter Switch set to Summer.
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:

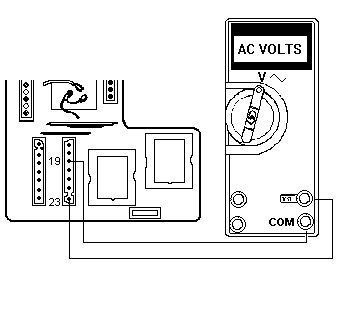

Measure voltage across pins 19 (brown) and 23 (white).
Note:
There is 110 V AC present when tap is off.
Note:
There is 110 V AC present when tap is off.

Isolate as per TOPs P4
and refit as necessary
